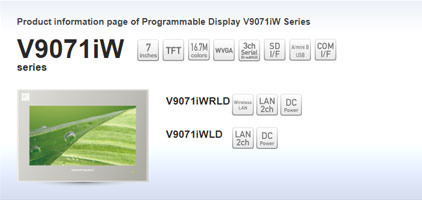

HMI Hakko V9071iWLD Dimensions and Part Names
| V9071iWLD | ||
|---|---|---|
| V9071iWLD Power supply | Rated voltage | 24V DC |
| Permissible range of voltage | DC: ±10% | |
| Permissible momentary power failure | DC within 1ms | |
| Demand (maximum rating) | DC: 22W or less | |
| Insulation resistance | DC500V 10MΩ or more | |
| V9071iWLD Physical environment | Ambient temperature | 0～50℃ *1 |
| Ambient humidity | 85%RH or less (without dew condensation) *1 | |
| Operation altitude | 2,000 meters or lower | |
| Atmosphere | Not to be exposed to corrosive gas, or conductive dust | |
| Storage temperature | -10～60℃ *1 | |
| Storage humidity | 85%RH or less (without dew condensation) *1 | |
| Overvoltage category | Category II | |
| Pollution degree | Pollution degree 2 | |
| V9071iWLD Mechanical operating conditions | Resistance to oscillation | Complies with JIS B 3502 (IEC61131-2) Vibration frequency: 5~9Hz, pulsating with:3.5mm, 9~150Hz, Acceleration: 9.8m/s2(1G),X,Y,Z: 3 directions (10 times each) |
| Resistance to shock | Complies with JIS B 3502 (IEC61131-2) Peak acceleration: 147m/s2(15G), X,Y,Z: 3 directions, three times each (18 times in total) | |
| V9071iWLD Electric operating conditions | Resistance to noise | Noise voltage: 1,000Vp-p, pulse width: 1μs, pulse rise time: 1ns |
| Resistance to static discharge | Complies with IEC61000-4-2, contact: 6kV, air: 8kV | |
| V9071iWLD Installation conditions | Grounding | Grounding resistance: Less than 100Ω, FG/SG separation |
| Structure | Front panel:Complies with IP66, Type 4X/13 (when waterproof gasket is installed) Rear cover:Complies with IP20 Form: Single unit, Installation method: Panel mounting | |
| Cooling system | Natural air cooling | |
| Dimensions W*H*D(mm) | 201.6×147.6×60.3 | |
| Panel cutout (mm) | 187.2×133.4（+0.5/-0） | |
| Case color | Light gray | |
| Material | PC | |
- *1: Use at a wet-bulb temperature of 39°C or less because higher temperatures may cause failure.
HMI Hakko V9071iWLD Performance Specifications
| Screen memory (FROM) | 64MB | |
|---|---|---|
| Backup memory (SRAM) | 800KB | |
| V9071iWLD Display | Display device | TFT color LCD |
| Resolution | 800×480 | |
| Display size | 7″wide | |
| Colors | 16.7 million *2 | |
| Backlight | LED | |
| Backlight life | 100,000 hours | |
| Touch switch | Type | Capacitance |
| V9071iWLD External interface | D-Sub 9-pin (CN1)*3 | RS-232C, RS-485(two-wire system), RS-422(four-wire system), Asynchronous type, Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200 bps |
| Modular 8-pin （MJ1/MJ2） | RS-232C, RS-485(two-wire system), RS-422(four-wire system)*4 , Asynchronous type, Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200, 187500*5 bps | |
| SD card | One card slot provided as standard | |
| Ethernet | 2ch, Baud rate: 100Mbps, 10Mbps | |
| Wireless LAN*6 | Complies with IEEE802.11b/g/n(2.4GHz) | |
| USB | Type A,Type mini-B(Ver.2.0) | |
| Sound output | – | |
| V9071iWLD Clock | Backup period | 5 years (Ambient temperature 25°C) |
| Calendar accuracy | Gap ±90 sec. per month (Ambient temperature 25°C, when power is not supplied) | |
| V9071iWLD Standard | CE marking | EN61000-6-2,EN61000-6-4,EN50581 |
| UL･cUL | UL61010-1、UL61010-2-201※7 | |
| KC | Compliant | |
| Radio Act*6 | Japan:TELEC USA:FCC Canada:IC RSS Europe:RE South Korea:KC | |
| Classification Standard | – |
- *2: For displaying pictures, 3D parts,video, and RGB input (excluding high-speed mode) only. Other parts are displayed in 65,536 colors.
- *3: Optional unit(DUR-00) is required for the V9071iW and V9060iTD.
- *4: 187,500 bps (four-wire system) for the V9071iW and V9060iTD MJ2 only.
- *5: Only for Siemens MPI (Incompatible with DUR-00).
- *6: Wireless LAN-compatible products only.
- *7: Only for Hardware Ver. f or later. Applicable standard for Hardware Ver. a to e is UL 508.
