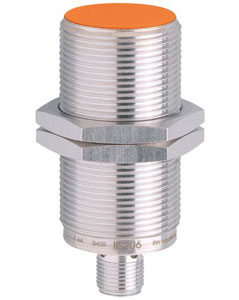

Product characteristics |
|---|
| Electrical design | PNP/NPN; (parameterisable) |
| Output function | normally open / normally closed; (parameterisable) |
| Communication interface | IO-Link |
| Housing | threaded type |
| Dimensions [mm] | M30 x 1.5 / L = 65 |
Electrical data |
|---|
| Operating voltage [V] | 15…30 DC |
| Current consumption [mA] | < 30 |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs |
|---|
| Electrical design | PNP/NPN; (parameterisable) |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 300 |
| Analogue voltage output [V] | 0…10; (linear; gradient: 1,111 V/mm; for frontal approach and for target made of mild steel: 30 x 30 x 1 mm) |
| Min. load resistance [Ω] | 2000 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone |
|---|
| Measuring range [mm] | 1…10 |
| Switch point IO-Link [mm] | 1.88…9.35 |
Accuracy / deviations |
|---|
| Correction factor | steel: 1 / stainless steel: 0.8 / brass: 0.5 / aluminium: 0.5 / copper: 0.4 |
| Hysteresis [% of Sr] | 3…15 |
| Note on hysteresis | |
| Linearity error of analogue output [%] | ± 1; (of the final value of the measuring range) |
| Repeatability analogue output [%] | ± 1; (of the final value of the measuring range) |
| Temperature coefficient [%/K vom MEW] | ±0,15 |
| Temperature drift [% vom MEW] | ±5 |
Response times |
|---|
| Response time [ms] | < 10 |
Interfaces |
|---|
| Communication interface | IO-Link |
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor: Identification and diagnosis; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Teach Channel |
| SIO mode | yes |
| Required master port type | A |
| Min. process cycle time [ms] | 3.2 |
| IO-Link process data (cyclical) | | function | bit length | | process value | 16 | | device status | 4 | | binary switching information | 2 |
|
| IO-Link functions (acyclical) | switching cycles counter; switch-on cycle counter; operating hours counter; internal temperature; application specific tag |
| Supported DeviceIDs | | Type of operation | DeviceID | | Default | 1206 |
|
| Note | | For further information please see the IODD PDF file under “Downloads” |
|
Operating conditions |
|---|
| Ambient temperature [°C] | -25…80 |
| Protection | IP 65; IP 66; IP 67; IP 68; IP 69K |
Tests / approvals |
|---|
| EMC | | EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | | EN 61000-4-3 HF radiated | 10 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-6 HF conducted | 10 V | | EN 55011 | class B |
|
| Vibration resistance | | EN 60068-2-6 Fc | 20 g (10…3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes |
|
| Shock resistance | | EN 60068-2-27 Ea | 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
|
| Continuous shock resistance | | EN 60068-2-27 | 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes |
|
| Fast temperature change | | EN 60068-2-14 Na | TA = -25°C; TB = 80°C; t1 = 30 min; t2 = < 10 s 50 cycles |
|
| MTTF [years] | 222 |
| UL approval | | Ta | -25…60 °C | | Enclosure type | Type 1 | | voltage supply | Limited Voltage/Current | | UL Approval no. | A024 | | File number UL | E174191 |
|
Mechanical data |
|---|
| Weight [g] | 151 |
| Housing | threaded type |
| Mounting | flush mountable |
| Dimensions [mm] | M30 x 1.5 / L = 65 |
| Thread designation | M30 x 1.5 |
| Materials | Housing: brass white bronze coated; sensing face: PBT orange; LED-Fenster: PEI; lock nuts: brass white bronze coated |
| Tightening torque [Nm] | 50 |
Displays / operating elements |
|---|
| Display | | target in measuring range | 4 x LED, yellow lights | | target outside measuring range | 4 x LED, yellow flashing |
|
Accessories |
|---|
| Items supplied | |
Remarks |
|---|
| Pack quantity | 1 pcs. |
Electrical connection – plug |
|---|
| Connection | Connector: 1 x M12 |
