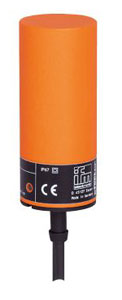

Jual Sensor IFM IB5068 Inductive
Kami menjual Sensor IFM IB5068 di Indonesia barang-barang kami semua berkualitas Original dengan harga yang bersaing dengan Perusahaan lain
IFM IB5068 Inductive Sensor Benefit :
- With PVC cable
- Smooth plastic housing to protect against deposits
- PBT housing resistant against pickling solutions
- For applications in pickling lines
- Clearly visible indication of the switching status
| Product characteristics | |||
|---|---|---|---|
| Electrical design | PNP | ||
| Output function | normally closed | ||
| Sensing range [mm] | 20 | ||
| Housing | cylindrical | ||
| Dimensions [mm] | Ø 34 / L = 82 | ||
| Electrical data | |||
| Operating voltage [V] | 10…36 DC | ||
| Current consumption [mA] | 15; (24 V) | ||
| Protection class | II | ||
| Reverse polarity protection | yes | ||
| Outputs | |||
| Electrical design | PNP | ||
| Output function | normally closed | ||
| Max. voltage drop switching output DC [V] | 2.5 | ||
| Permanent current rating of switching output DC [mA] | 250 | ||
| Switching frequency DC [Hz] | 60 | ||
| Short-circuit protection | yes | ||
| Type of short-circuit protection | pulsed | ||
| Overload protection | yes | ||
| Detection zone | |||
| Sensing range [mm] | 20 | ||
| Real sensing range Sr [mm] | 20 ± 10 % | ||
| Operating distance [mm] | 0…16.2 | ||
| Accuracy / deviations | |||
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2 | ||
| Hysteresis [% of Sr] | 1…15 | ||
| Switch point drift [% of Sr] | -10…10 | ||
| Operating conditions | |||
| Ambient temperature [°C] | -25…80 | ||
| Protection | IP 67 | ||
| Tests / approvals | |||
| EMC |
| ||
| MTTF [years] | 1844 | ||
| Mechanical data | |||
| Weight [g] | 268 | ||
| Housing | cylindrical | ||
| Mounting | non-flush mountable | ||
| Dimensions [mm] | Ø 34 / L = 82 | ||
| Materials | PBT | ||
| Displays / operating elements | |||
| Display |
| ||
| Accessories | |||
| Items supplied |
| ||
| Remarks | |||
| Pack quantity | 1 pcs. | ||
| Electrical connection | |||
| Connection | Cable: 2 m, PVC; 3 x 0.5 mm² | ||
