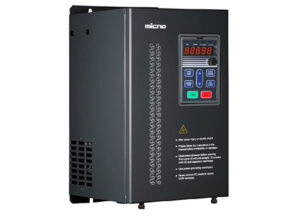

Inverter Micno AE300
Kami Jual Inverter Micno AE300 berkualitas Original dan dijamin keasliannya. Micno adalah merk dagang terkemuka yang telah dipakai hampir di semua pabrik yang ada di Indonesia. Kami siap memenuhi kebutuhan inverter Micno untuk Anda dengan cepat dengan harga bersaing di seluruh Indonesia.
Inverter Micno AE300 Series Economic Type Open Loop Vector Control Inverter
AE300 Series Economic Type Open Loop Vector Control Inverter is a kind of mini general vector inverters, 3 phase ac motor drivers adopt international advanced vector control algorithm and possess excellent functions;
Based on its advanced design, it is well-known for its good quality, smaller and space-saving with competitive price.
Technical Specifications of AE300 Series Economic Type Open Loop Vector Inverter
| Item | Technical Index | Specification |
| Input | Input voltage | 3AC 380V±15% |
| Input frequency | 47~63Hz | |
| Output | Output voltage | 0～rated input voltage |
| Output frequency | V/f control: 0~3000Hz Sensorless vector control: 0~300Hz | |
| Control Features | Control mode | V/f control Sensorless vector control Torque control |
| Operation command mode | Keypad control Terminal control Serial communication control | |
| Frequency setting mode | Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combined & switched in various modes. | |
| Overload capacity | G model: 150% 60s, 180% 10s, 200% 3s P model: 120% 60s, 150% 10s, 180% 3s | |
| Starting torque | 0.5Hz/150% (SVC); 1Hz/150% (V/f) | |
| Speed adjustment range | 1:100 (SVC), 1:50 (V/f) | |
| Speed control precision | ±0.5% (SVC) | |
| Carrier frequency | 1.0–16.0kHz, automatically adjusted according to temperature and load characteristics | |
| Frequency accuracy | Digital setting: 0.01Hz Analog setting: maximum frequency * 0.05% | |
| Torque boost | Automatically torque boost; manually torque boost: 0.1%~30.0% | |
| V/f curve | Three types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square) | |
| Acceleration/deceleration mode | Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.1s~3600.0s | |
| DC braking | DC braking when starting and stopping DC braking frequency: 0.0Hz~maximum frequency, braking time: 0.0s~100.0s | |
| Jog operation | Jog operation frequency: 0.0Hz~maximum frequency Jog acceleration/deceleration time: 0.1s~3600.0s | |
| Simple PLC & multi-step speed operation | It can realize a maximum of 16 segments speed running via the built-in PLC or control terminal. | |
| Built-in PID | Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.) | |
| Automatic voltage regulation | Keep output voltage constant automatically when input voltage fluctuating | |
| Control Function | Common DC bus | Common DC bus for several inverters, energy balanced automatically |
| Torque control | Torque control without PG | |
| Torque limit | “Rooter” characteristics, limit the torque automatically and prevent frequent over-current tripping during the running process | |
| Wobble frequency control | Multiple triangular-wave frequency control, special for textile | |
| Timing/length/ counting control | Timing/length/counting control function | |
| Over-voltage & over-current stall control | Limit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping | |
| Fault protection function | Up to 30 fault protection including over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running status during failure & has fault automatic reset function | |
| Input/output terminals | Input terminals | Programmable DI: 7 on-off inputs, 1 high-speed pulse input 2 programmable AI: AI1: 0～10V or 0/4～20mA; A12: 0～10V or 0/4～20mA |
| Output terminals | 1 programmable open collector output: 1 analog output (open collector output or high-speed pulse output) 2 relay output 2 analog output: 0/4~20mA or 0~10V | |
| Communication terminals | Offer RS485 communication interface, support MODBUS-RTU communication protocol | |
| Human machine interface | LED display | Display frequency setting, output frequency, output voltage, output current, etc. |
| Multifunction key | QUICK/JOG key, can be used as multifunction key | |
| Environment | Ambient temperature | -10℃～40℃, derated 4% when the temperature rise by every 1℃ (40℃～50℃). |
| Humidity | 90%RH or less (non-condensing) | |
| Altitude | ≤1000M: output rated power, ＞1000M: output derated | |
| Storage temperature | -20℃～60℃ |
Selection Table
| Inverter Model | Motor | Rated Output Current (A) | |
| KW | HP | ||
| 3AC 380V/400V/415V -15%~15% | |||
| AE300-0R7G/1R5P-T4 | 0.75/1.5 | 1/2 | 2.1/3.8 |
| AE300-1R5G/2R2P-T4 | 1.5/2.2 | 2/3 | 3.8/6.0 |
| AE300-2R2G/004P-T4 | 2.2/4.0 | 3/5 | 6.0/9.0 |
| AE300-004G/5R5P-T4 | 4.0/5.5 | 5/7.5 | 9/13 |
| AE300-5R5G/7R5P-T4 | 5.5/7.5 | 7.5/11 | 13/17 |
| AE300-7R5G/011P-T4 | 7.5/11 | 11/15 | 17/25 |
| AE300-011G/015P-T4 | 11/15 | 15/20 | 25/32 |
| AE300-015G/018P-T4 | 15/18.5 | 20/25 | 32/37 |
| AE300-018G/022P-T4 | 18.5/22 | 25/30 | 37/45 |
| AE300-022G/030P-T4 | 22/30 | 30/40 | 45/60 |
| AE300-030G/037P-T4 | 30/37 | 40/50 | 60/75 |
| AE300-037G/045P-T4 | 37/45 | 50/60 | 75/90 |
| AE300-045G/055P-T4 | 45/55 | 60/75 | 90/110 |
| AE300-055G/075P-T4 | 55/75 | 75/100 | 110/150 |
| AE300-075G/090P-T4 | 75/90 | 100/125 | 150/176 |
| AE300-090G/110P-T4 | 90/110 | 125/150 | 176/210 |
| AE300-110G/132P-T4 | 110/132 | 150/175 | 210/253 |
| AE300-132G/160P-T4 | 132/160 | 175/210 | 253/304 |
| AE300-800G-T4 | 800 | 1070 | 1400 |
| AE300-900G-T4 | 900 | 1200 | 1580 |
| AE300-1000G-T4 | 1000 | 1330 | 1750 |
| AE300-1200G-T4 | 1200 | 1600 | 2100 |
| AE300-1400G-T4 | 1400 | 2120 | 2350 |
MICNO industrial AC speed drives adopt world-class vector control technology and they can be equipped with rich function expansion cards, flexible application, stable operation
Pesan Sekarang
Pesan sekarang untuk cepat memenuhi kebutuhan perusahaan anda. Kami jual Inverter Micno dan banyak Inverter Lainnya. Untuk informasi lebih lanjut silahkan hubungi Sales Marketing kami.
