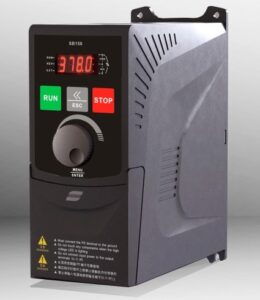

Inverter Slanvert SB150 smart inverter
Kami Jual Inverter Slanvert SB150 berkualitas Original dan dijamin keasliannya. Slanvert adalah merk dagang terkemuka yang telah dipakai hampir di semua pabrik yang ada di Indonesia. Kami siap memenuhi kebutuhan inverter Slanvert untuk Anda dengan cepat dengan harga bersaing di seluruh Indonesia.
Inverter Slanvert SB150 Description
SB150 is a compact inverter adopting the optimized high-performance space vector control VVVF arithmetic and featuring elegant appearance, delicate circuit design, ingenious circuit design, simple and practical functions, and reasonable menu arrangements.
Common specifications for SB150 series
| Item | Description | |
| Input | Rated voltage and frequency | 3-phase: 220V/380V, 1-phase 220V~240V 50/60Hz |
| Allowable range | Voltage: -15%~10%, voltage imbalance＜3％, frequency: 47~63 Hz | |
| output | Output voltage | 3-phase, 0V~input voltage, with the error less than 5%. |
| Output frequency range | V/F control: 0.00~650.00Hz Vector control: 0.00~200.00Hz | |
| performance standard | Overload capacity | 150％ of rated current for 1 minute |
| Frequency resolution | Digital reference: 0.01Hz Analog reference: 0.1％ of max. frequency | |
| Output frequency precision | Analog reference: : ±0.2％ of max. frequency(25±10℃) Digital reference: 0.01Hz | |
| Control terminal | Communication | Built-in RS485 port, supporting Modbus protocol |
| Analog input AI | 2 channels AI(also used as digital input),voltage or current type, positive or negative, with drop detection | |
| Analog output AO | 1 channels AO, voltage or current type independent terminal to choose | |
| Digital input | 5 channels of multi-function digital input(two of them are analog inputs),sampling period 1ms | |
| Digital output | 1 channel of NPN multi-function digital output,1 channels of multi-function relay output | |
| Software function | Motor control mode | Space vector V/F control, with auto torque boost and slip compensation |
| Command source | Keypad, terminal and communication. They can be switched over by terminals | |
| Frequency reference source | Keypad(keys and POT), communication, UP/DOWN value, AI1, AI2. Auxiliary frequency reference can be introduced for fine tuning | |
| V/F curve | Linear curve and two reduced-torque curves, with manual and auto torque boost | |
| Dynamic braking | Built-in braking unit and external braking resistor | |
| DC braking | Braking time: 0.0~60.0s Braking current: 0.0~100.0％ of rated current | |
| Accel/Decel | Linear or S-curve acceleration/deceleration | |
| Jog | Jog frequency: 0.10~50.00Hz | |
| AVR | Keeps the output voltage constant automatically when the voltage of power grid fluctuates | |
| Auto carrier regulation | Carrier frequency is regulated automatically based on the load characteristic and ambient temperature | |
| Momentary power failure | Ensures uninterrupted operation by controlling the DC link voltage | |
| Process PID | process PID adjustor, can do 4 references, can disable terminals, and provide PID revise mode, sleep function (suit for water supply industry) | |
| Wobble | Ensures even winding of textiles | |
| Multistep frequency | 7 multistep frequencies, selected by digital input terminal. | |
| others | Smooth start, stall prevention, zero-speed delay, oscillation suppression, deadband compensation | |
| Protection functions | Over-current, overvoltage, under-voltage, input/output phase loss, output phase short-circuit, overheating, motor overload, external fault, analog input disconnection, stall prevention, etc. | |
| Options | Braking resistor, input/output reactor, DC reactor, EMI filter, Profibus-DP module, remote control box, LCD keypad etc. | |
| Ambient | Service site | Altitude less than 1000 meters, indoor, no direct sunlight, free of dust, corrosive gases, inflammable gases, oil mist, water vapor, water drops, salt mist, etc. |
| Temperature/humid | -10~＋40℃/20~90％RH, no condensation | |
| Storage temperature | -20~＋60℃ | |
| Vibration | Less than 5.9m/s2(0.6g) | |
| Structure | Protection degree | IP20 |
| Cooling method | Forced air cooling, with fan control | |
Adhering to the business philosophy of “excellence without borders, hope infinite”, and looking into the future, the company’s development goal is to become the world’s most leading-edge R&D and manufacturing base for the industrial automation control system, develop HopeSenlan into an internationally renowned brand, and become an internationally leading enterprise in the fields of energy conservation, environment protection, Internet drive control, new energy and intelligent equipment!
Pesan Sekarang
Pesan sekarang untuk cepat memenuhi kebutuhan perusahaan anda. Kami jual Inverter Slanvert dan banyak Inverter Lainnya. Untuk informasi lebih lanjut silahkan hubungi Sales Marketing kami.
